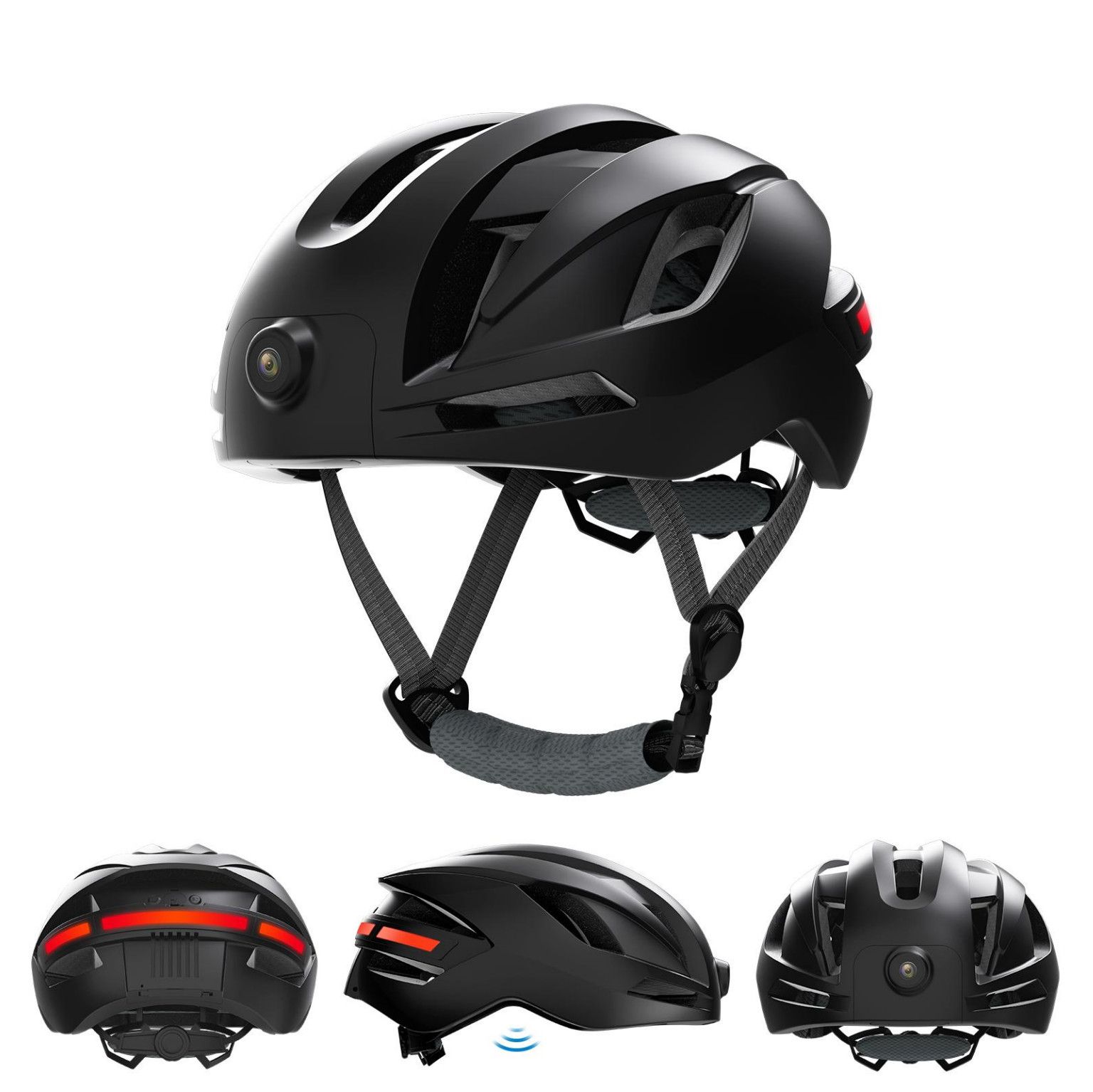

Place of Origin: Mainland China
Model Number: RAW3
Material: America imported EPS Foam + PC Shell + Integrated LED turn signals, 1080P camera, GPS, bluetooth
Technology: In-mold
Air vents: 14
Weight: 457g
Certification:CE EN 1078 / CPSC
Age group: teenager and adults
Color/graphics:Customized
Size: M/L:57-61cm
Best use: road bike, street bike, city bike
Smart Bike helmet Specification:
Product Parameters
| helmet | Structure | In mould forming smart helmet with built-in camera, wifi, GPS, LED turn signal, Bluetooth |
| Outer Material | America imported PC (polycartonate ) | |
| Inner material | EPS(High-density Foam) | |
| Embeded Parts | Glass fiber reinforced nylon | |
| Air Vent | 14 | |
| Built-in | camera, wifi, GPS, LED turn signal, Bluetooth | |
| Other parts | Headlock buckle, nylon strap, PA webbing and washable pads | |
| Turn Signals | Lamp Beads | LED |
| Irradiation Range | 50 metres | |
| Features | Battery protection: 1000+ cycles rechargeable | |
| Battery milliampere: 1350mAh | ||
| Battery management: rechargeable and replaceable | ||
| DSP | GPCV1167 | |
| Sensor | GC2083 | |
| Camera angle | 170 degree | |
| Videos Resolution | 1080P（1920*1080/30fps） | |
| Video file format | MP4 | |
| Wifi APP | Yes,Anzone | |
| Power | Li-ion,Polymer,1350mAh | |
| Gyroscope | Built-in(Anti-shake) | |
| Working time per charging | 4H | |
| Loop-record | 3min | |
| Interface Type | Type C USB | |
| Recharging volts,current | 5V-2A | |
| Video format | MP4 | |
| Storage compression mode | H.264 | |
| GPS Logger | Built-in | |
| MIC | Support,MIC-2X4MM,42+-3dB | |
| Speaker | Support,8ohm,0.5W | |
| Extended Memory | MAX.128G,Micro SD card | |
| White Balance | Automatic | |
| Exposure | Automatic | |
| ISO | Automatic | |
| Working Temperature | 0-60℃ | |
| Packaging | Gift box size | 30*18*27 cm |
| Product weight | 420g | |
| Box gross weight | 1.15Kg with accessories | |
| Carton size | 62*51*43 cm | |
| QTY/Carton | 8 PCS | |
| N.W. | 8.5Kg | |
| G.W. | 10.60kG | |
| Container Load | 20 inch GP around 195 CTNS, 1560PCS; 40 inch GP around 405 CTNS, 3240PCS; 40 inch HQ around 486 CTNS, 3888PCS; |

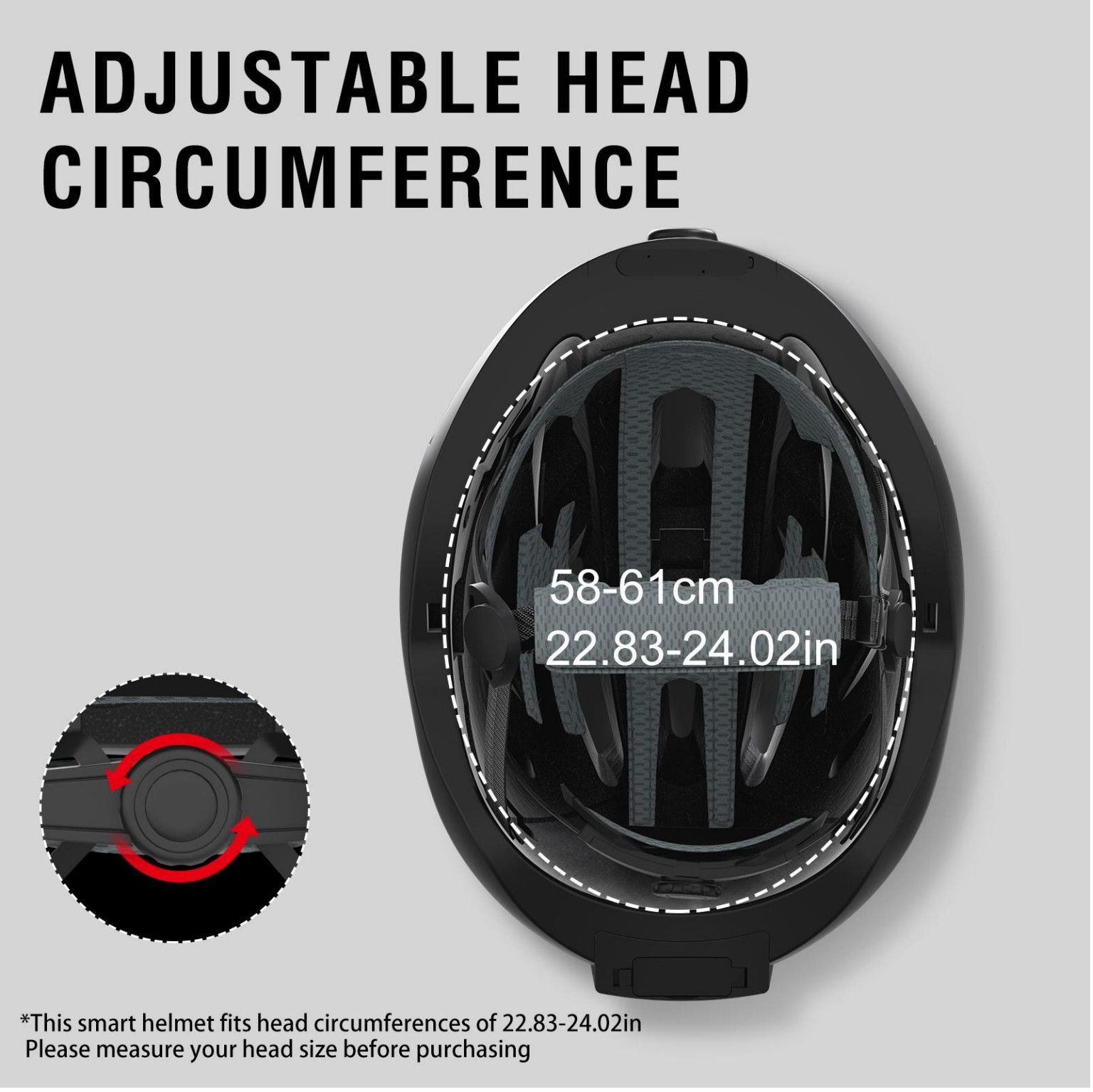

Designed for comfort and performance, the helmet features a streamlined, air-breaking shape that enhances heat dissipation for cooler, longer rides. The detachable 3D heat dissipation lining and ergonomic automatic adjustment straps ensure a secure, personalized fit for head circumferences of 22.83–24.02 inches. A chin ventilation belt further enhances breathability.
Capture every moment of your journey with the integrated 1080P HD camera, delivering crystal-clear footage. The continuous recording function ensures your entire ride is documented, ideal for preserving scenic adventures or enhancing safety through video evidence. Relive your experiences with vivid, high-definition clarity.
Seamlessly connect to your smartphone via the Wi-Fi app to access real-time recording, viewing, downloading, and sharing of video content. This feature allows you to instantly review and share your ride footage, enhancing both convenience and engagement with your cycling community.

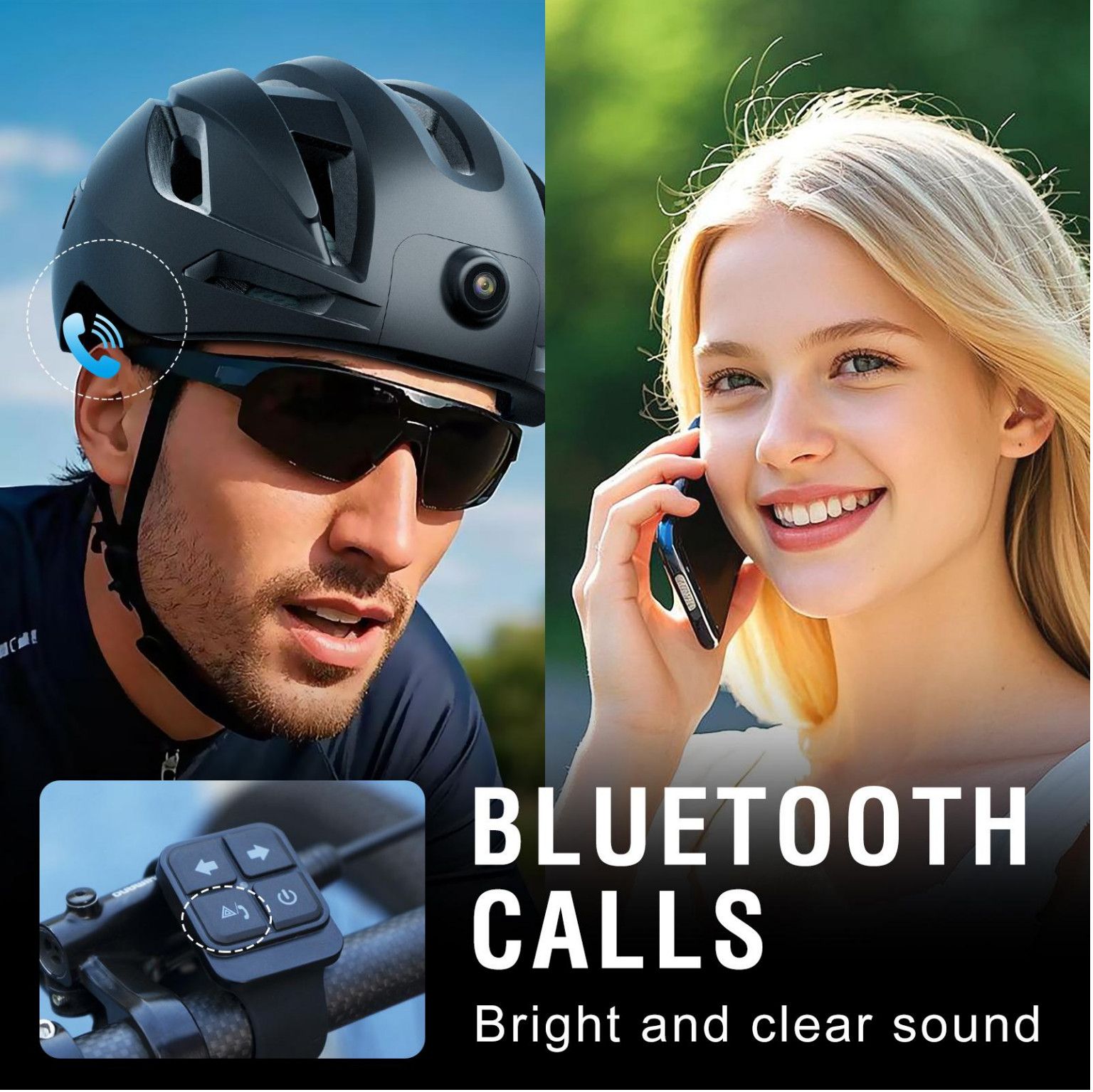

Stay connected with the built-in high-fidelity Bluetooth headset, offering crystal-clear sound for music playback and hands-free calls. The intelligent noise-canceling technology ensures clear communication during rides, eliminating background noise for an uninterrupted and enjoyable experience.
Stay informed with the built-in voice reminder module, which provides real-time status updates on battery life, connectivity, and other functions. This feature allows you to maintain control and focus on your ride without needing to check settings manually.
Track your routes with precision using the integrated GPS module, which records your journey alongside video footage. This feature provides accurate navigation, ride analytics, and the ability to share your paths, making it perfect for adventurers and commuters alike.

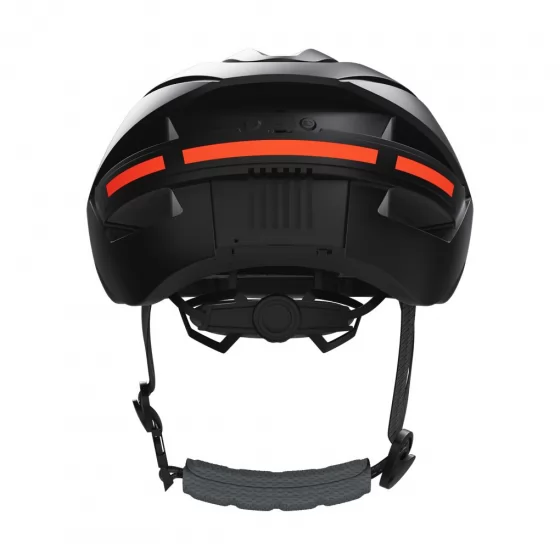

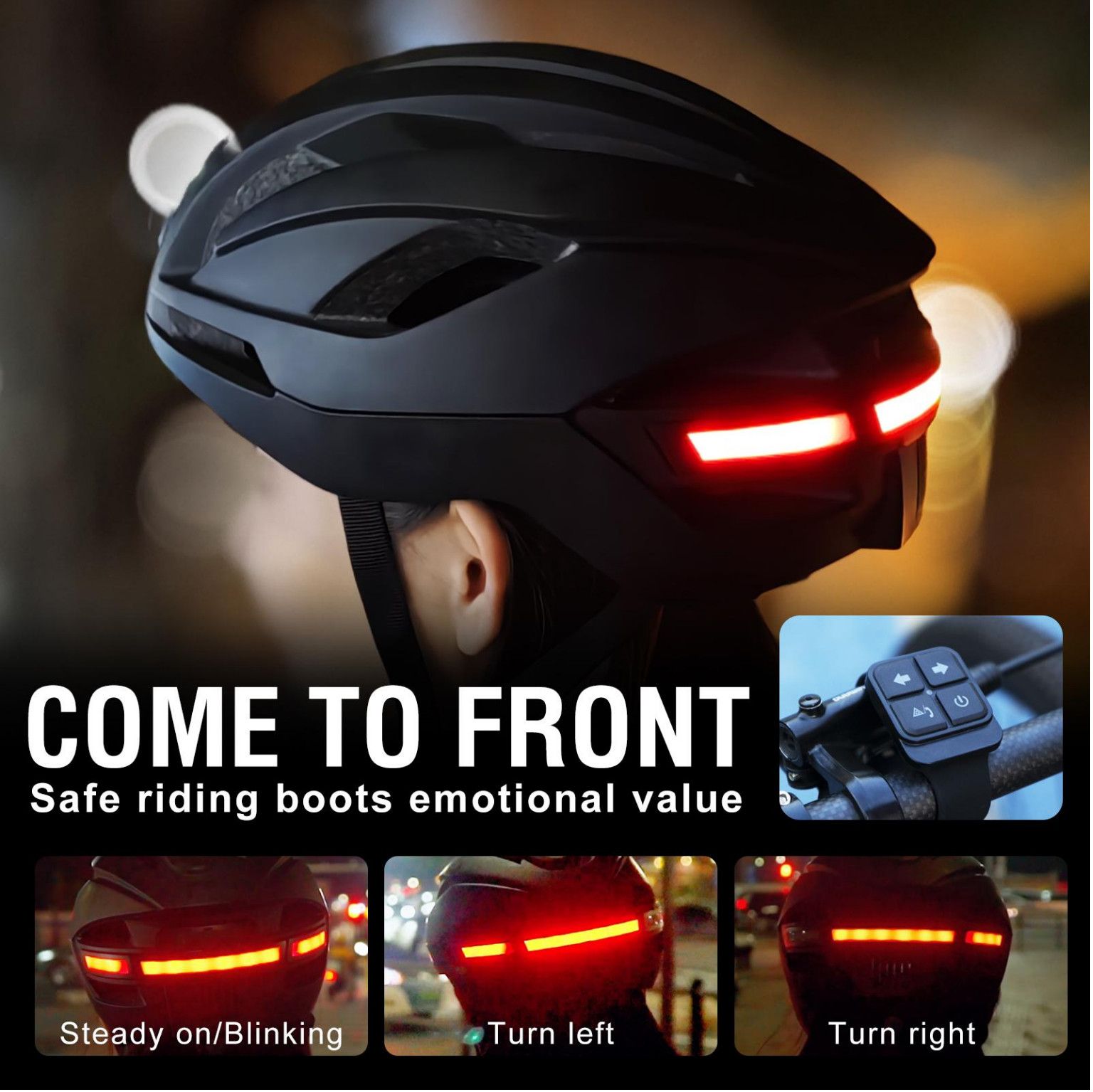

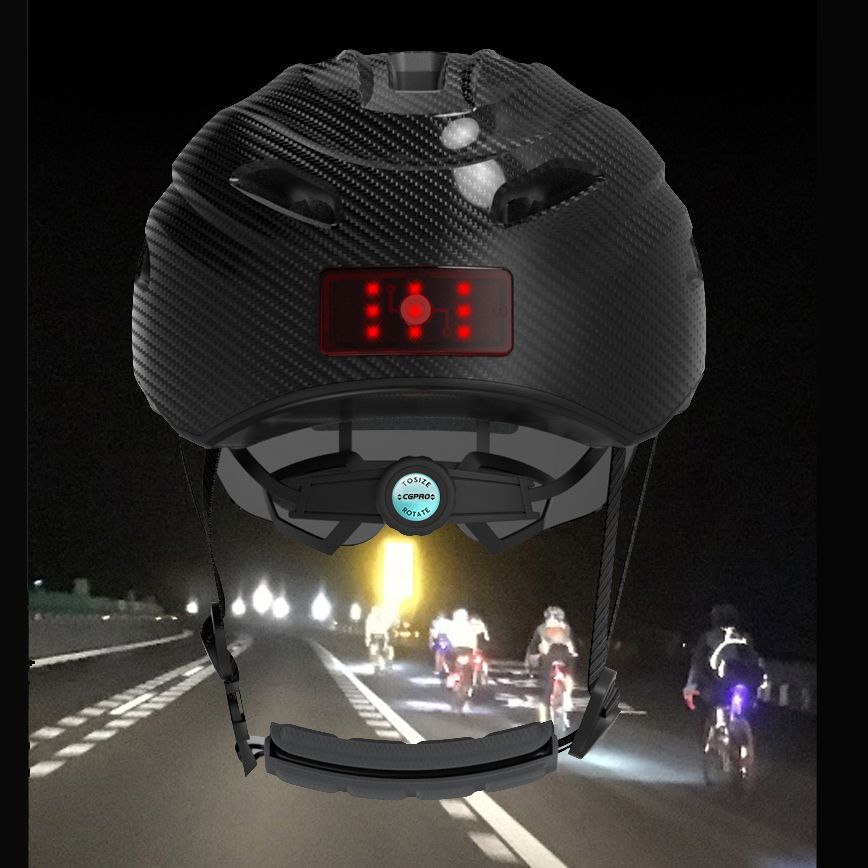

Enhance your safety with multi-mode turn signal taillights, designed to clearly indicate left and right turns. These high-visibility lights improve your presence on the road, ensuring safer navigation in various lighting conditions, controlled effortlessly via a standard steering remote.

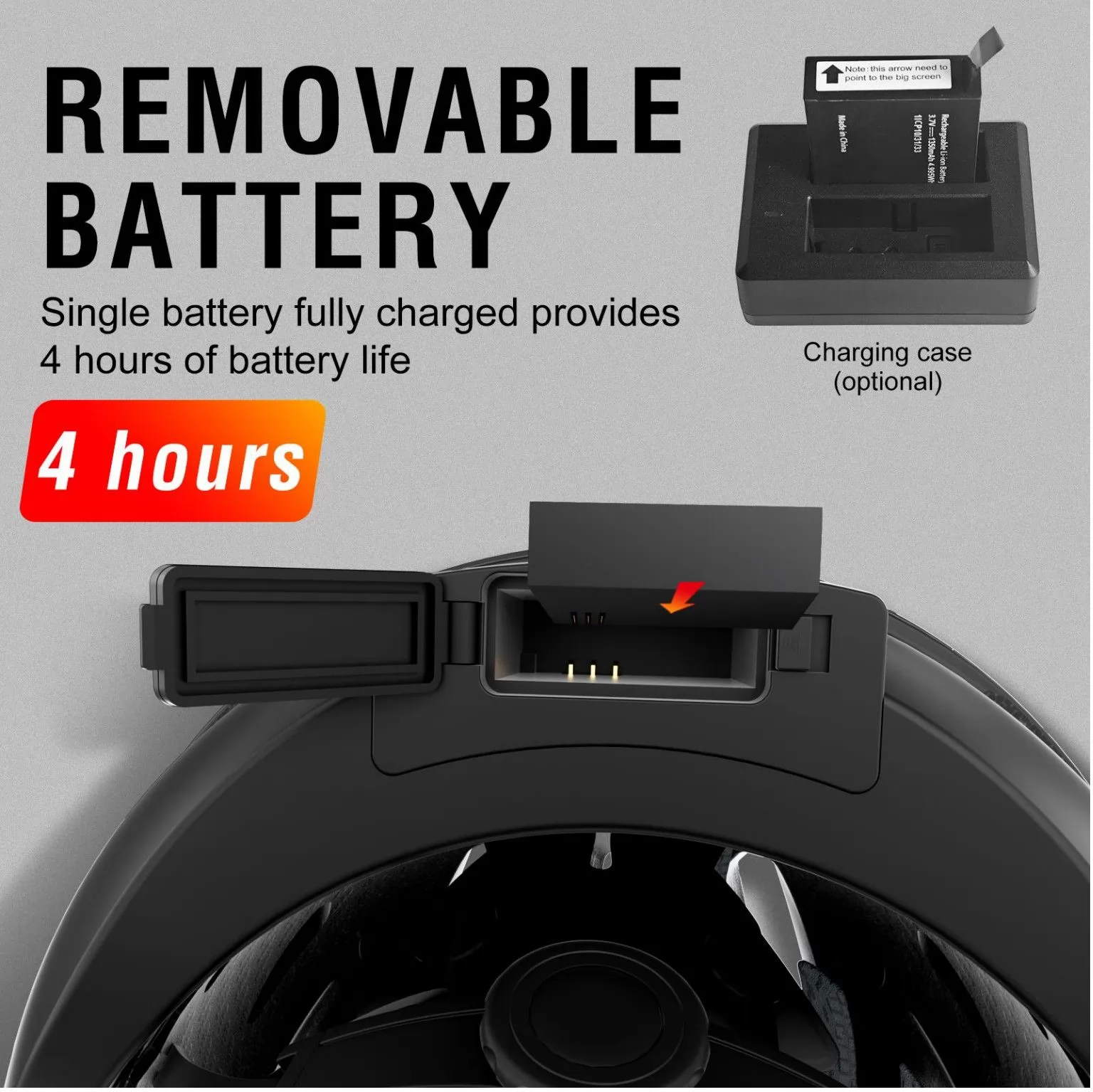

Power your rides with a high-capacity 1350mAh detachable lithium battery, providing up to 4 hours of worry-free recording time. The detachable design allows for easy recharging, with an optional charging case for extended convenience, ensuring your helmet is always ready for action.
We have set up a design department in order to meet the different customers;
Our designers will design the most creative and most innovative helmet in different styles one step ahead the market trends and meets the safety standards, such as CPSC, CE and ASTM. Our sales department and Customer Services provide all the needs to take care of Quality Control and On Time Delivery for Domestic and International market. What's more, we have our own EPS molding plant
