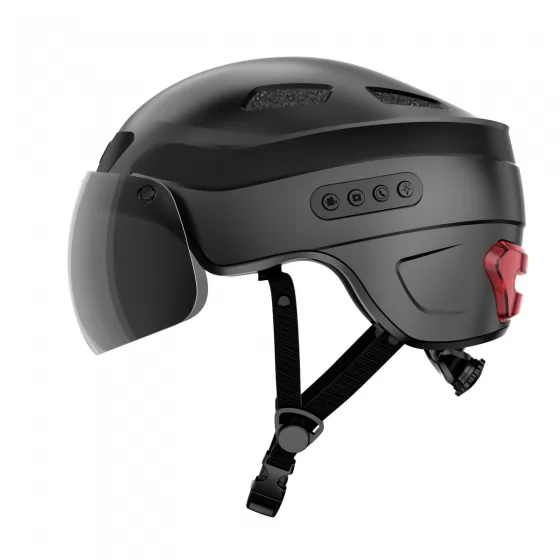

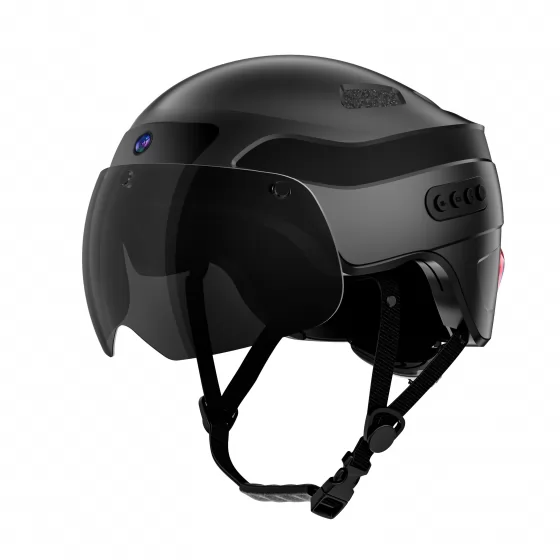

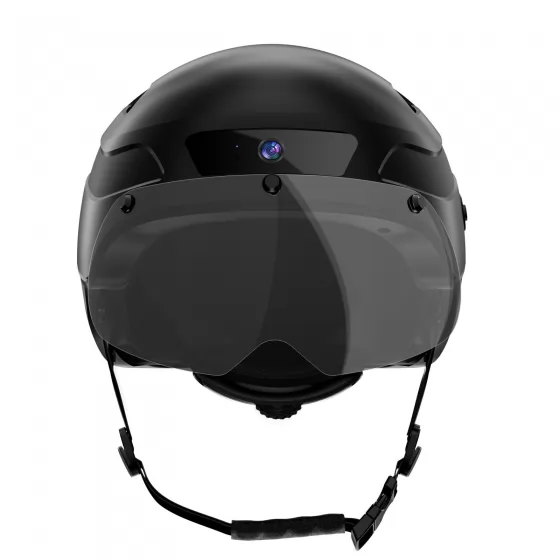

Cycling Racing Bike Helmet with Camera Tail Light En1078 Cpsc 1203
Cycling Racing Bike Helmet with Camera Tail Light En1078 Cpsc 1203
Cycling Racing Bike Helmet with Camera Tail Light En1078 Cpsc 1203
Cycling Racing Bike Helmet with Camera Tail Light En1078 Cpsc 1203
Cycling Racing Bike Helmet with Camera Tail Light En1078 Cpsc 1203
Cycling Racing Bike Helmet with Camera Tail Light En1078 Cpsc 1203
Cycling Racing Bike Helmet with Camera Tail Light En1078 Cpsc 1203
Cycling Racing Bike Helmet with Camera Tail Light En1078 Cpsc 1203
Cycling Racing Bike Helmet with Camera Tail Light En1078 Cpsc 1203
Cycling Racing Bike Helmet with Camera Tail Light En1078 Cpsc 1203
Cycling Racing Bike Helmet with Camera Tail Light En1078 Cpsc 1203
Cycling Racing Bike Helmet with Camera Tail Light En1078 Cpsc 1203

Cycling Racing Bike Helmet with Camera Tail Light En1078 Cpsc 1203

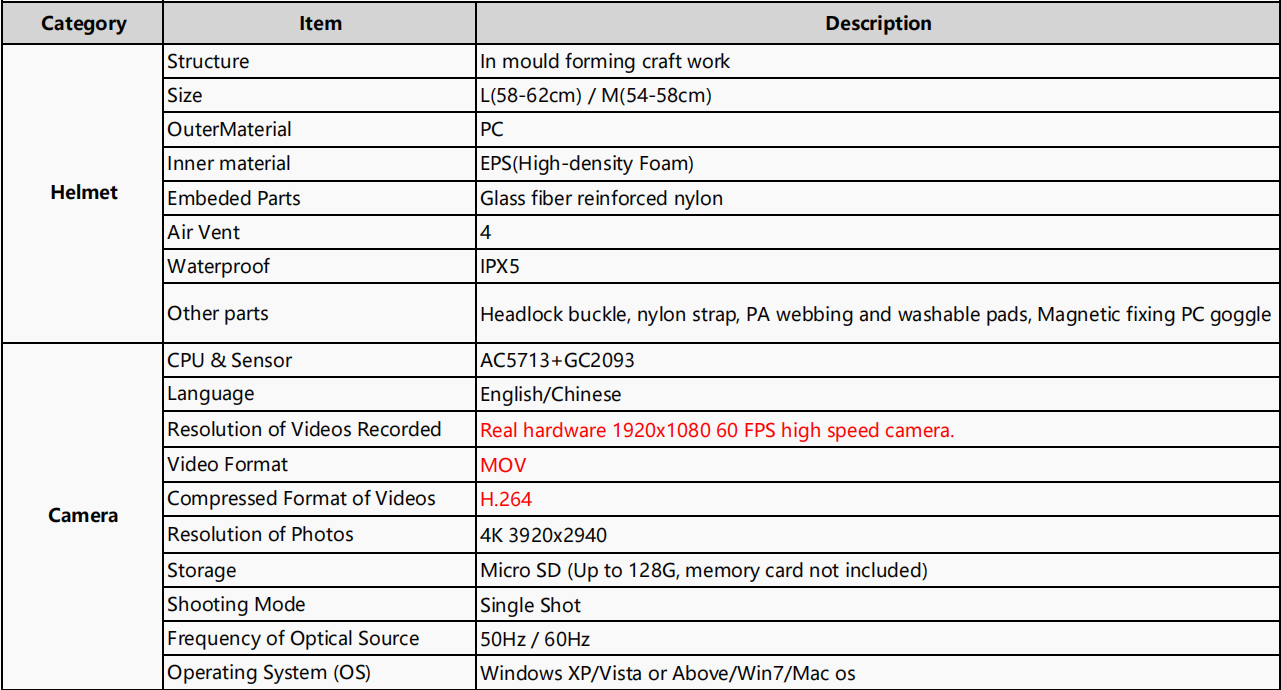

Place of Origin: Mainland China

Model Number: HA03D

Material: America imported EPS Foam + PC Shell

Technology: Integrated molding

Standard: Black buckle+fan-shaped buckle+adjuster+health cloth hot pressed lininghealth cloth hot pressed chin pad+Camera + Bluetooth + tail light

Air vents: 12

Weight: M:420g L:440g

Certification:CE EN 1078/CPSC1203/GB24429-2009/ASTMF1447

Age group:  teenager and adults

Color/graphics:Customized

Size:  M(55-58CM)L(59-61CM)

Best use: road bike, street bike, city bike


Contact Us
PRODUCT DESCRIPTION

Cycling Racing Bike Helmet with Camera Tail Light En1078 Cpsc 1203Cycling Racing Bike Helmet with Camera Tail Light En1078 Cpsc 1203Cycling Racing Bike Helmet with Camera Tail Light En1078 Cpsc 1203

SECURITY ENHANCEMENTS:

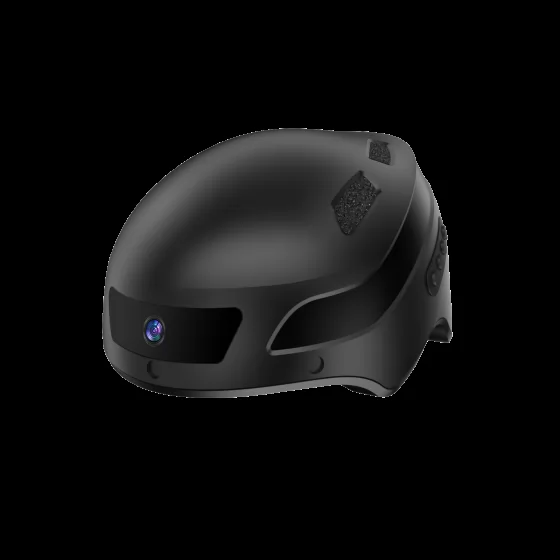

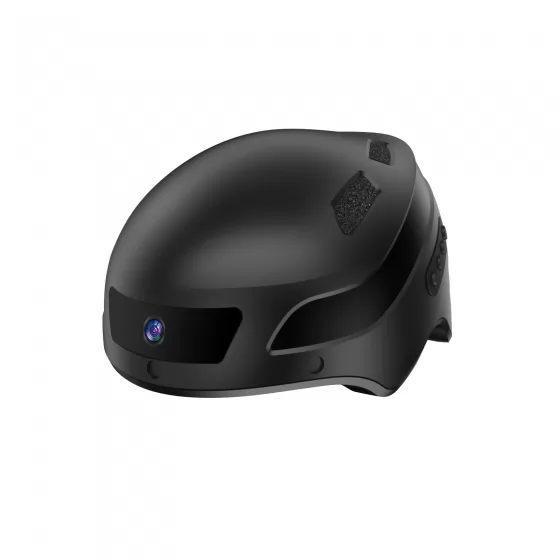

With camera function,Real-time video and photography: The built-in camera can record the ride in real time, provide video evidence to help resolve traffic accident disputes, and also record beautiful riding moments.

COMFORT PADDING:

The comfort padding inside a helmet is a crucial component for rider safety and enjoyment. The padding serves multiple purposes - absorbing impact, wicking away moisture, preventing the helmet from rubbing, and ensuring a proper fit.

The padding production starts with cutting foam or fabric materials into the required shapes and sizes. The foam can be open or closed-cell, with open-cell being more breathable and closed-cell providing more support. The fabric is often a technical performance material designed to wick sweat.

Precise die cutting machines are used to cut the padding pieces efficiently and accurately. The pieces are then assembled into pads and inserted into designated areas inside the helmet lining. This is done either by hand or using specialized equipment for large scale production.

At the same time, the internal head circumference adjuster can achieve precise wearing adjustment.

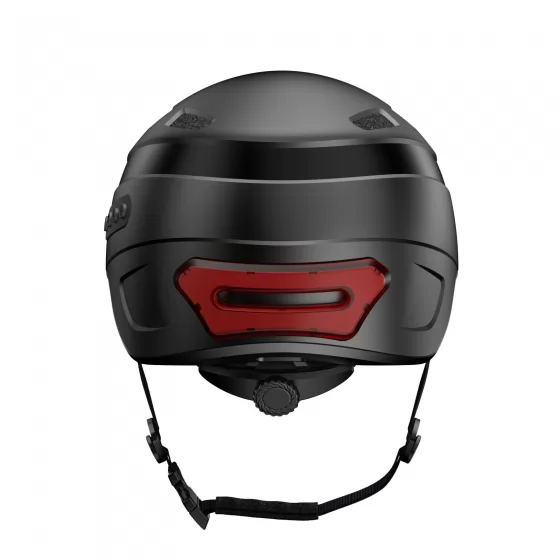

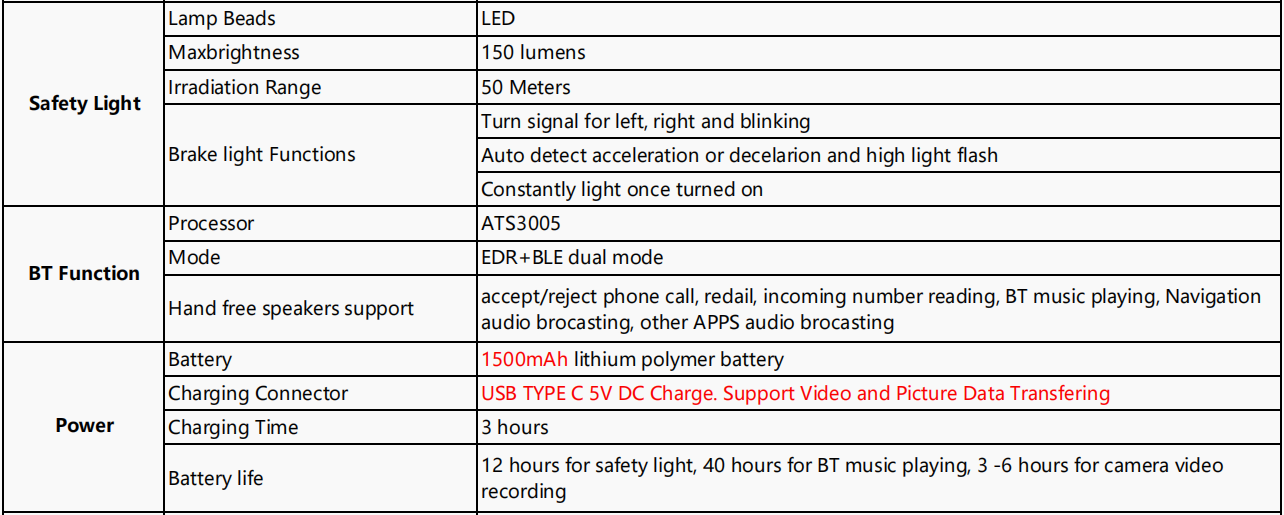

LED TAIL LIGHT:

LED lights: LED lights on helmets can improve riders' visibility at night or in low-light environments, significantly reducing the risk of accidents.   LED lights can also be set as warning lights to alert vehicles and pedestrians behind, increasing safety.

This helmet's integrated turn signal LEDs significantly enhance rider safety. Clearly indicating your intended direction to vehicles and pedestrians behind you, they proactively prevent collisions, especially during lane changes or turns. The bright, highly visible 180-degree lights eliminate blind spot risks. Easy to activate manually or via handlebar remote (if equipped), they provide critical communication, complementing the rear safety light for all-round protection-a vital upgrade for urban cycling.

PRODUCTION PROCESS
2D Sketch
01
2D Sketch
Clay & Modeling
02
Clay & Modeling
3D Drawing
03
3D Drawing
3D Print Prototype
04
3D Print Prototype
CNC Mold Making
05
CNC Mold Making
Finishied Mold
06
Finishied Mold
Testing Sample
07
Testing Sample
Silk Print
08
Silk Print
PC Blister
09
PC Blister
Manipulator Punching Vents
10
Manipulator Punching Vents
Plastic Injection Workshop
11
Plastic Injection Workshop
EPS+PC In-mold Workshop
12
EPS+PC In-mold Workshop
America POLYSOURCE EPS raw material
13
America POLYSOURCE EPS raw material
Sewing
14
Sewing
Water Decal
15
Water Decal
Painting
16
Painting
QC Quality Inspection
17
QC Quality Inspection
Trimming&Deburring
18
Trimming&Deburring
Assembly
19
Assembly
Mold Forming (carbon fber products)
20
Mold Forming (carbon fber products)
Autoclave (Carbon Fber Auto Parts)
21
Autoclave (Carbon Fber Auto Parts)
Laser Beam Cutting Vents
22
Laser Beam Cutting Vents
In House Testing Lab
23
In House Testing Lab
Warehouse
24
Warehouse

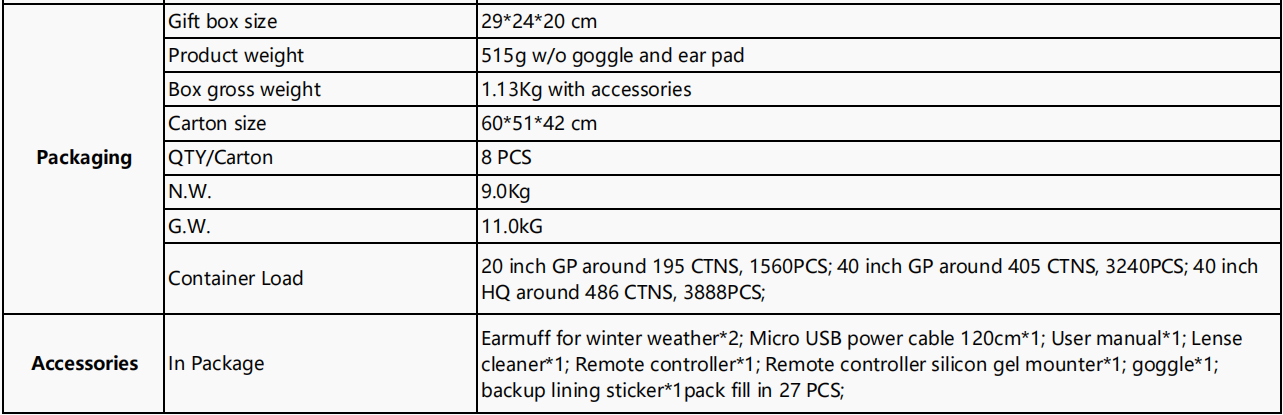

Package Display

Selling Units: Single item

Packaging Details: 12 pcs/ctn 73*58*35CM1800 pcs
